OIL FREE AIR COMPRESSORS

An interesting alternative for generating oil-free compressed air.The process of compression is achieved by means of a fixed and an eccentrically revolving spiral. Any contact is thereby eliminated, guaranteeing reliable operation and low wear.

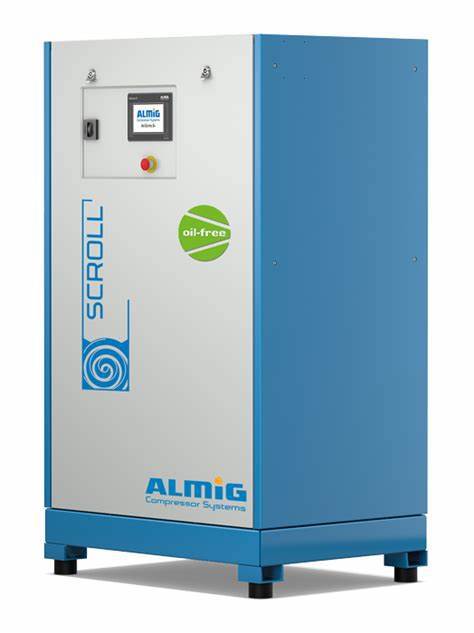

Type SL SCROLL compressors on base plate
The standard version is equipped with a pressure switch, motor protection and acoustic insulation, from 5.5 kW with star-delta starter.

Type SLD

SCROLL compressor on horizontal, galvanized air receiver

Type SLDK
SCROLL compressor on horizontal, galvanized air receiver with refrigerating air dryer, mounted

Type SLDM
SCROLL compressor as a multiple unit; 2 or 3 compressors operating independently on a horizontal, galvanized air receiver

RANGE OF PERFORMANCE:

• 1.5 kW single phase
• 2.2 / 3.7 / 5.5 kW three phase
• Multiple units from 7.5 to 16.5 kW
• Flow from 160 to 1881 l/min or from 6 to 67 cfm
• Pressure (g) 8 or 10 bar

OPTIONS:

• Super sound insulation
• Particle filter
• Base-load changeover switch
• Star-delta starter from 2.2 to 4.5 kW
• Exhaust air duct
